Gear

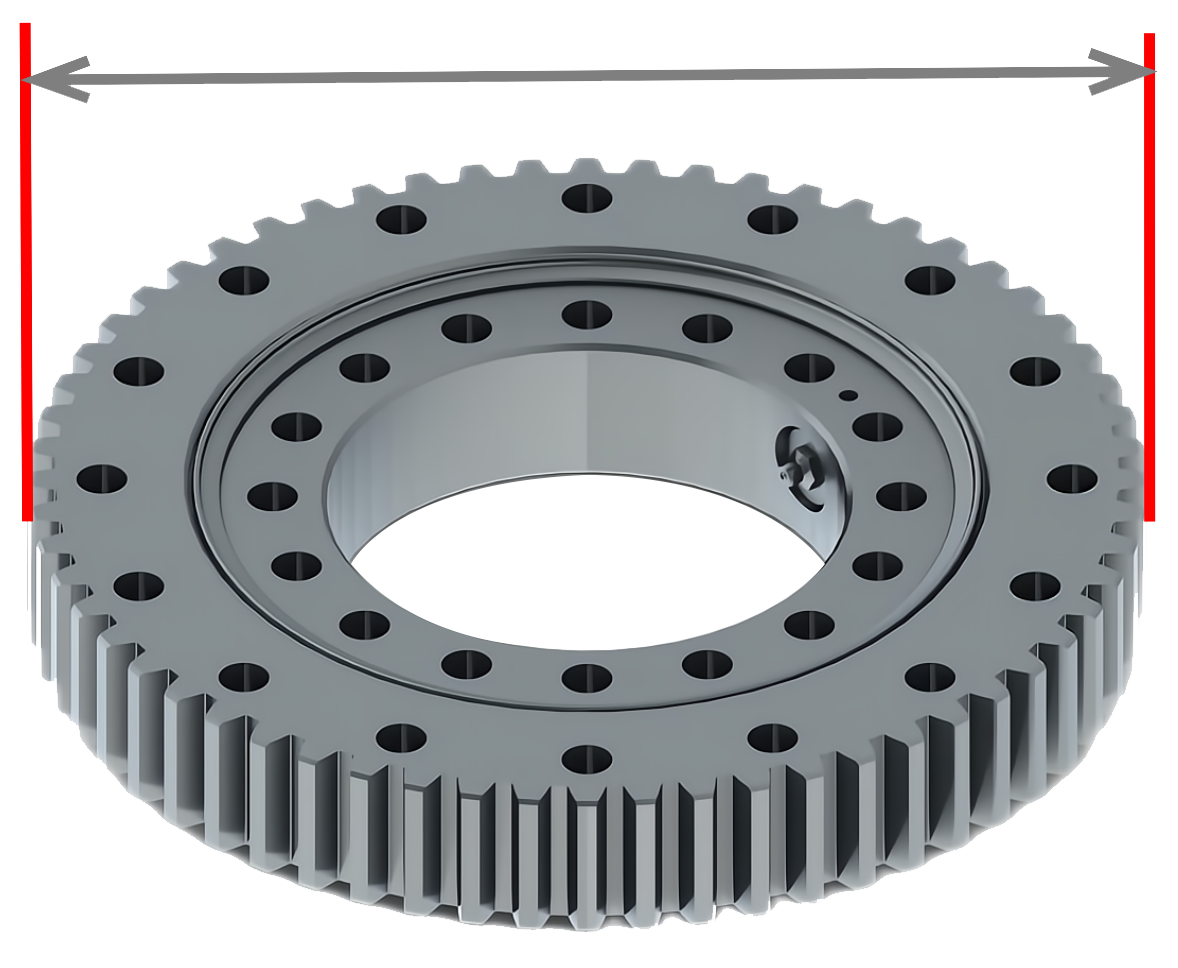

Do (Outside Diameter Of Outer Ring)

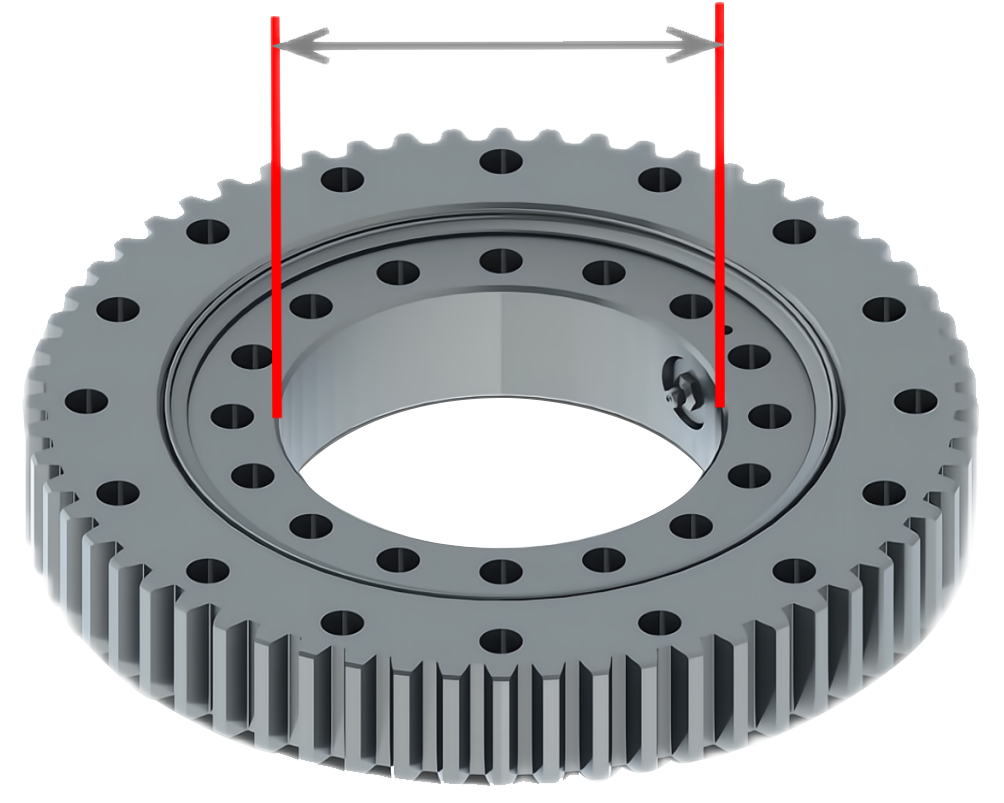

di (Inside Diameter Of Inner Ring)
H (Height Of Overall Bearing Assembly)
Lo (Bolt Circle In Outer Ring)
Li (Bolt Circle In Inner Ring)
C0a (Basic Static Load Rating)
C0r (Basic Static Load Rating)
Pd (Diametral Pitch)
Fz (Max Gear Tooth Load Fz)
- Equivalent to Manufacturer :
- IMO
120 Series
23 Products
120 Series
Series 120 precision versions are avaiable medium precision ,robust design, insersitive to vibrations.
Part Number
Gear
(in)
(in)
(in)
(in)
(in)
(in)
(in)
(in)
(in)
(in)
10-20 0311/0-32002
Without Gear
17"
7.5"
2.205"
1.732"
1.732"
12.421"
12.303"
15"
9.5"
-
-
100714 lbs
43163 lbs
12-20 0311/1-32202
Internal Gear
17"
8.35"
2.205"
1.732"
1.732"
12.421"
12.303"
15"
10.5"
9"
6290 lbs
100714 lbs
43163 lbs
11-20 0413/1-32112
External Gear
19.9"
12"
2.205"
1.732"
1.732"
16.437"
16.319"
18"
13.5"
19.5"
5800 lbs
133087 lbs
57101 lbs
10-20 0413/0-32012
Without Gear
20.4"
12"
2.205"
1.732"
1.732"
16.437"
16.319"
19"
13.5"
-
-
133087 lbs
57101 lbs
12-20 0413/1-32212
Internal Gear
20.4"
12.85"
2.205"
1.732"
1.732"
16.437"
16.319"
19"
14.88"
13.25"
6290 lbs
133087 lbs
57101 lbs
11-20 0541/1-32122
External Gear
25.15"
17"
2.205"
1.732"
1.732"
21.476"
21.358"
23.25"
18.5"
24.75"
5800 lbs
175351 lbs
75086 lbs
10-20 0541/0-32022
Without Gear
25.5"
17"
2.205"
1.732"
1.732"
21.476"
21.358"
24"
18.5"
-
-
175351 lbs
75086 lbs
12-20 0541/1-32222
Internal Gear
25.5"
17.6"
2.205"
1.732"
1.732"
21.476"
21.358"
24"
19.36"
18"
6290 lbs
175351 lbs
75086 lbs
11-20 0641/1-32132
External Gear
29.15"
21"
2.205"
1.732"
1.732"
25.413"
25.295"
27.25"
22.5"
28.75"
5800 lbs
207723 lbs
88800 lbs
10-20 0641/0-32032
Without Gear
29.5"
21"
2.205"
1.732"
1.732"
25.413"
25.295"
28"
22.5"
-
-
207723 lbs
88800 lbs
12-20 0641/1-32232
Internal Gear
29.5"
21.6"
2.205"
1.732"
1.732"
25.413"
25.295"
28"
23.63"
22"
6290 lbs
207723 lbs
88800 lbs
11-20 0741/1-32142
External Gear
32.9"
25"
2.205"
1.732"
1.732"
29.350"
29.232"
31"
26.5"
32.5"
5800 lbs
240043 lbs
102738 lbs
10-20 0741/0-32042
Without Gear
33.4"
25"
2.205"
1.732"
1.732"
29.350"
29.232"
32"
26.5"
-
-
240096 lbs
102738 lbs
12-20 0741/1-32242
Internal Gear
33.4"
25.6"
2.205"
1.732"
1.732"
29.350"
29.232"
32"
27.63"
26"
6290 lbs
240043 lbs
102738 lbs
11-20 0841/1-32152
External Gear
37.2"
28.83"
2.205"
1.732"
1.732"
33.287"
33.169"
35"
30.5"
36.667"
7960 lbs
272468 lbs
116676 lbs
10-20 0841/0-32052
Without Gear
37.4"
28.83"
2.205"
1.732"
1.732"
33.287"
33.169"
35.75"
30.5"
-
-
272468 lbs
116676 lbs
12-20 0841/1-32252
Internal Gear
37.4"
29.133"
2.205"
1.732"
1.732"
33.287"
33.169"
35.75"
31.5"
29.667"
8940 lbs
272468 lbs
116676 lbs
11-20 0941/1-32162
External Gear
41.2"
32.83"
2.205"
1.732"
1.732"
37.224"
37.106"
38.88"
34.38"
40.667"
7960 lbs
304841 lbs
130389 lbs
10-20 0941/0-32062
Without Gear
41.25"
32.83"
2.205"
1.732"
1.732"
37.224"
37.106"
39.75"
34.38"
-
-
304841 lbs
130389 lbs
12-20 0941/1-32262
Internal Gear
41.25"
33.133"
2.205"
1.732"
1.732"
37.224"
37.106"
39.75"
35.5"
33.667"
8940 lbs
304841 lbs
130389 lbs
11-20 1091/1-32172
External Gear
46.867"
38.75"
2.205"
1.732"
1.732"
43.130"
43.012"
44.63"
40.25"
46.333"
7960 lbs
353400 lbs
151296 lbs
10-20 1091/0-32072
Without Gear
47.18"
38.75"
2.205"
1.732"
1.732"
43.130"
43.012"
45.62"
40.25"
-
-
353400 lbs
151296 lbs
12-20 1091/1-32272
Internal Gear
47.18"
39.133"
2.205"
1.732"
1.732"
43.130"
43.012"
45.62"
41.5"
39.667"
8940 lbs
353400 lbs
151296 lbs
