02 2022 00

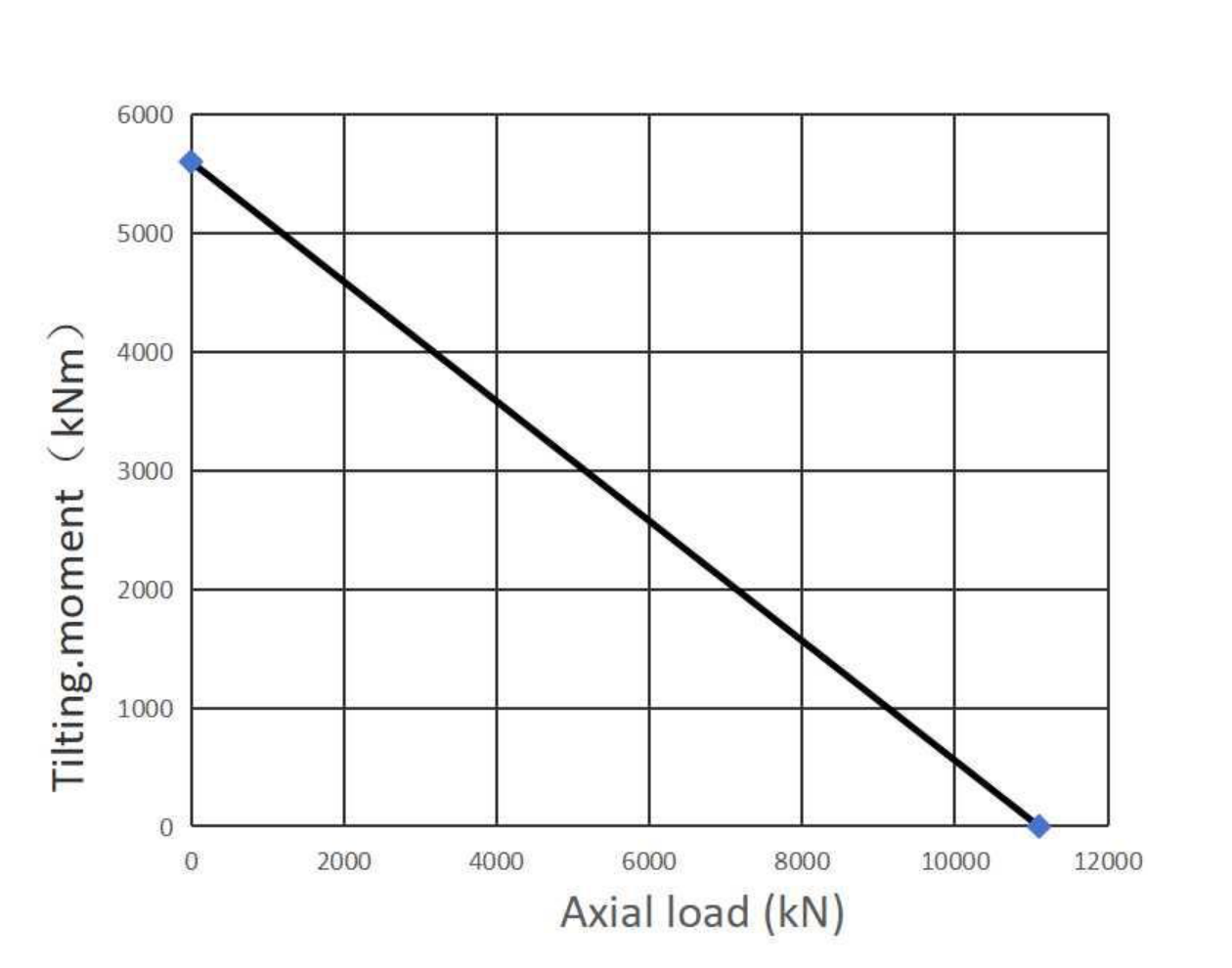

02 2022 00 Four Point Contact Ball Slewing Ring Bearing
Part Number 02 2022 00
Brand: LILY
|
Equivalent: ROLLIX
System of Measurement Metric
Series rectangular sections
Gear Internal Gear
Type Ball
Bearing Type Standard
Product Type Slewing Beraing
Inside Diameter Of Inner Ring 1780 mm
Outside Diameter Of Outer Ring 2195 mm
Height Of Overall Bearing Assembly 130 mm
Height Of Inner Ring 120 mm
Height Of Outer Ring 110 mm
Bolt Circle In Inner Ring 1921 mm
Bolt Circle In Outer Ring 2123 mm
Size Holes In Inner Ring ref. Drawing
Size Holes In Outer Ring ref. Drawing
Number Holes In Inner Ring 48
Number Holes In Outer Ring 48
Pitch Diameter Of Gear 1808 mm
Module 16
Number Of Gear Teeth 112
Tooth Form Droite
Ring Material 42CRO or 50MN
Ball Materrial Chrome Steel
Cage Material Nylon or 300 Series Stainless Steel
Seal Material NBR
RoHS Compliant
Weight 979 Kg

Request a Quote

*
*
*
Allow file formats (gif、jpeg、jpg、png、pdf、txt、doc、xls、xlsx、docx)
INTERCHANGE
The LILY bearing part series 02 2022 00 is a potential replacement for these common bearing part numbers.
LILY
ROLLIX
L02 2022 00
02 2022 00
